GT VisionLift Hydraulicmc
Sans forage double cylindre à câble 1:2 - Type hôpital - Guide technique

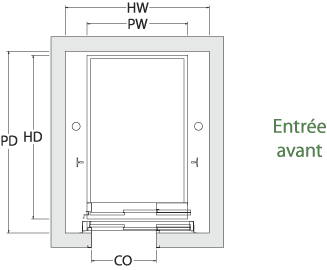

Entrée avant
Cliquez sur le type d'ouverture à une capacité pour obtenir le dessins technique correcpondant :
OLDV: Ouverture Latérale Double Vitesse
Type d'ouverture |
Capacité | Largeur du puits | Profondeur du puits | Largeur de plate-forme | Profondeur de plate-forme | Larg intérieur de cabine | Profondeur intérieur de cabine | Dimensions de l'ouverture |
Dessins | HW | HD | PW | PD | CIW | CID | CO | |
OLDV | 2500 Lbs 1134 Kg |
6'-10" (2083 mm) |
8'-5" (2565 mm) |
4'-10' (1473 mm) |
7'-7" (2311 mm) |
4'-6" (1372 mm) |
6'-8" (2032 mm) |
3'-0" x 7'-0" (914 x 2134 mm) |
4000 Lbs
1814 Kg |
7'-8"
(2337 mm) |
9'-8"
(2946 mm) |
5'-8'
(1727 mm) |
8'-10 1/2"
(2705 mm) |
5'-4"
(1626 mm) |
7'-11"
(2413 mm) |
4'-0" x 7'-0"
(1219 x 2134 mm) |
|
4500 Lbs
2041 Kg |
8'-0"
(2438 mm) |
9'-8"
(2946 mm) |
6'-0"
(1829 mm) |
8'-10 1/2"
(2705 mm) |
5'-8"
(1727 mm) |
7'-11"
(2413 mm) |
4'-0" x 7'-0"
(1219 x 2134 mm) |
|
5000 Lbs
2268 Kg |
8'-5"
(2565 mm) |
10'-3"
(3124 mm) |
6'-3"
(1905 mm) |
9'-5 1/2"
(2883 mm) |
5'-11"
(1803 mm) |
8'-6"
(2591 mm) |
4'-6" x 7'-0"
(1372 x 2134 mm) |

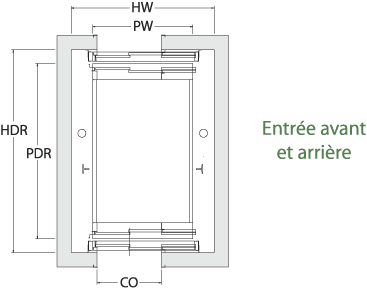

Entrée avant et arrière
Cliquez sur le type d'ouverture à une capacité pour obtenir le dessins technique correcpondant :
OLDV: Ouverture Latérale Double Vitesse
Type d'ouverture |
Capacité | Largeur du puits | Profondeur du puits | Largeur de plate-forme | Profondeur de plate-forme | Largeur intérieur de cabine | Profondeur intérieur de cabine | Dimensions de l'ouverture |
Dessins | HW | HD | PW | PD | CIW | CID | CO | |
OLDV | 2500 Lbs 1134 Kg |
6'-10" (2083 mm) |
9'-6 1/4" (2902 mm) |
4'-10' (1473 mm) |
8'-2 3/4" (2508 mm) |
4'-6" (1372 mm) |
6'-8 3/4" (2051 mm) |
3'-0" x 7'-0" (914 x 2134 mm) |
4000 Lbs
1814 Kg |
7'-8"
(2337 mm) |
10'-9 1/4"
(3283 mm) |
5'-8'
(1727 mm) |
9'-5 3/4"
(2889 mm) |
5'-4"
(1626 mm) |
7'-11 3/4"
(2432 mm) |
4'-0" x 7'-0"
(1219 x 2134 mm) |
|
4500 Lbs
2041 Kg |
8'-0"
(2438 mm) |
10'-9 1/4"
(3283 mm) |
6'-0"
(1829 mm) |
9'-5 3/4"
(2889 mm) |
5'-8"
(1727 mm) |
7'-11 3/4"
(2432 mm) |
4'-0" x 7'-0"
(1219 x 2134 mm) |
|
5000 Lbs
2268 Kg |
8'-5"
(2565 mm) |
11'-4 1/4"
(3461 mm) |
6'-3"
(1905 mm) |
10'-0 3/4"
(3067 mm) |
5'-11"
(1803 mm) |
8'-6 3/4"
(2610 mm) |
4'-6" x 7'-0"
(1372 x 2134 mm) |
* Toute dimension, capacité... Nous pouvons le faire ! Contactez-nous pour vos projets hors standards !
