GT VisionLift Hydraulictm
Holeless Twin Jack DirectPassenger type Technical guide

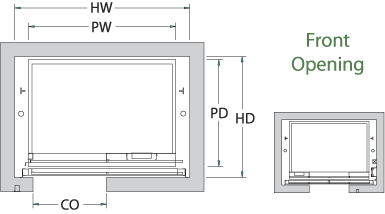

Front opening

HolessTwinJackPassengerFront

Click on the link to obtain the corresponding drawing :

Type of
opening
Capacity Hoistway width Hoistway depth Platform
width
Platform
depth
Cab interior
width
Cab interior
depth
Clear
opening
Drawings   HW HD PW PD CIW CID CO
2SP
2100 Lbs
(953 Kg)
7'-4"
(2235)
5'-9"
(1753)
6'-0"
(1829)
5'-1"
(1549)
5'-8"
(1727)
4'-3"
(1295)
3'-0" x 7'-0"
(914x2134)
2500 Lbs
(1134 Kg)
8'-4"
(2540)
5'-9"
(1753)
7'-0"
(2134)
5'-1"
(1549)
6'-8"
(2032)
4'-3"
(1295)
3'-6" x 7'-0"
(1067x2134)
3000 Lbs
(1361 Kg)
8'-4"
(2540)
6'-3"
(1905)
7'-0"
(2134)
5'-7"
(1702)
6'-8"
(2032)
4'-9"
(1448)
3'-6" x 7'-0"
(1067x2134)
3500 Lbs
(1588 Kg)
8'-4"
(2540)
6'-11"
(2108)
7'-0"
(2134)
6'-3"
(1905)
6'-8"
(2032)
5'-5"
(1651)
3'-6" x 7'-0"
(1067x2134)
4000 Lbs
(1814 Kg)
9'-4"
(2845)
6'-11"
(2108)
8'-0"
(2438)
6'-3"
(1905)
7'-8"
(2337)
5'-5"
(1651)
4'-0" x 7'-0"
(1219x2134)

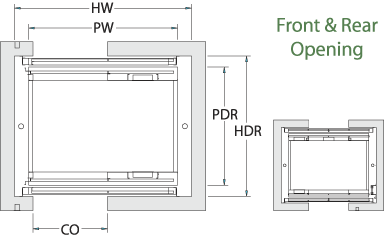

 Front opening & Rear opening

HolessTwinJackPassengerFrontRear

Click on the link to obtain the corresponding drawing :

Type of
opening
Capacity Hoistway width Hoistway depth Platform
width
Platform
depth
Cab interior
width
Cab interior
depth
Clear
opening
Drawings   HW HDR PW PDR CIW CID CO
2100 Lbs
(953 Kg)
7'-4"
(2235)
6'-7 1/4"
(2013)
6'-0"
(1829)
5'-6 3/4"
(1695)
5'-8"
(1727)
4'-3 3/4"
(1314)
3'-0" x 7'-0"
(914x2134)
2500 Lbs
(1134 Kg)
8'-4"
(2540)
6'-7 1/4"
(2013)
7'-0"
(2134)
5'-6 3/4"
(1695)
6'-8"
(2032)
4'-3 3/4"
(1314)
3'-6" x 7'-0"
(1067x2134)
3000 Lbs
(1361 Kg)
8'-4"
(2540)
7'-1 1/4"
(2165)
7'-0"
(2134)
6'-0 3/4"
(1848)
6'-8"
(2032)
4'-9 3/4"
(1467)
3'-6" x 7'-0"
(1067x2134)
3500 Lbs
(1588 Kg)
8'-4"
(2540)
7'-9 1/4"
(2369)
7'-0"
(2134)
6'-8 3/4"
(2051)
6'-8"
(2032)
5'-5 3/4"
(1670)
3'-6" x 7'-0"
(1067x2134)
4000 Lbs
(1814 Kg)
9'-4"
(2845)
7'-9 1/4"
(2369)
8'-0"
(2438)
6'-8 3/4"
(2051)
7'-8"
(2337)
5'-5 3/4"
(1670)
4'-0" x 7'-0"
(1219x2134)



Overhead dimension
Speed
Overhead (OH)
up to 100
Call us
125
Call us
150
Call us
Pit dimension
Location
Pit depth
USA - Canada
(except Ontario)
4'-0''
Ontario
5'-0''

Elevations

View with Adobe® Reader® (PDF)

Front opening

Front & rear opening

Download Autocad file (DWG)

Front opening

Front & rear opening
