GT VisionLift MRLtm
MRL Z3 - Hospital type Technical guide

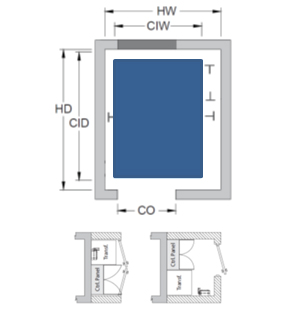

Front opening

Front

 Any size, any capacity, any shape... We can go up to 10 000 lbs capacity ! Please contact us to customize your project !



Type of
opening
Capacity Hoistway width

Hoistway depth

Cab interior
width
Cab interior depth  Clear2
Drawings   HW1 HD CIW CID CO2
SSP
4000 Lbs
(1814 Kg)
8'-1"
(2464)
9'-8"
(2946)
5'-4"
(1626)
7'-11"
(2413)
4'-0" x 7'-0"
(1219x2134)
SSP
4500 Lbs
(2041 Kg)
8'-5"
(2565)
9'-8"
(2946)
5'-8"
(1727)
7'-11"
(2413)
4'-0" x 7'-0"
(1219x2134)
SSP
5000 Lbs
(2268 Kg)
8'-8"
(2642)
10'-3"
(3124)
5'-11"
(1803)
8'-6"
(2591)
4'-6" x 7'-0"
(1372x2134)




Speed
fpm
(m/s)
Overhead 5 Pit Depth
OH 4 P
Minimum Recommended

200

(1,00)

15'-6''

(4724)

17'-0''

(5182)

5'-0''

(1524)

350

(1,75)

16'-0''

(4877)

17'-6''

(5334)

5'-6''

(1676)

500

(2,5)

17'-0''

(5182)

18'-6''

(5639)

6'-6''

(1981)


Control Room Dimensions
Type Width Depth Height
Closet Door

5'-9''

(1753)

3'-0''

(914)

8'-0''

(2438)

Single Door

5'-9''

(1753)

4'-9''

(1448)

8'-0''

(2438)









Front & rear opening

Front

 Any size, any capacity, any shape... We can go up to 10 000 lbs capacity ! Please contact us to customize your project !

Type of
opening
Capacity Hoistway width

Hoistway depth

Cab interior
width
Cab interior depth Size
opening
Drawings   HW1 HD CIW CID CO2
SSP
4000 Lbs
(1814 Kg)
8'-1"
(2464)
10'- 3/4"
(3283)
5'-4"
(1626)
7'-11 3/4"
(2432)
4'-0" x 7'-0"
(1219x2134)
SSP
4500 Lbs
(2041 Kg)
8'-5"
(2565)
10'-9 1/4"
(3283)
5'-8"
(1727)
7'-11 3/4"
(2432)
4'-0" x 7'-0"
(1219x2134)
SSP
5000 Lbs
(2268 Kg)
8'-8"
(2642)
11'-4 1/4"
(3461)
5'-11"
(1803)
8'-6 3/4"
(2610)
4'-6" x 7'-0"
(1372x2134)




Speed
fpm
(m/s)
Overhead
Pit Depth
OH5
P
Minimum Recommended

200

(1,00)

15'-6''

(4724)

17'-0''

(5182)

5'-0''

(1524)

350

(1,75)

16'-0''

(4877)

17'-6''

(5334)

5'-6''

(1676)

500

(2,5)

17'-0''

(5182)

18'-6''

(5639)

6'-6''

(1981)


 Control Room Dimensions

Type Width Depth Height
Closet Door

5'-9''

(1753)

3'-0''

(914)

8'-0''

(2438)

Single Door

5'-9''

(1753)

4'-9''

(1448)

8'-0''

(2438)





* Any size, any capacity, any shape... We can do it!  Please contact us to customize your project !

* WARNING * Do not use those dimensions for final construction purposes. Local code or code year application might require differents spacing and will affect those dimensions. Please contact us for confirmation.

Notes:

1- For elevators with occupied space underneath hoistway, width may change. Please contact us for dimensions.

2- Optional custom height door opening also available. For glassback dimensions, please contact us.

3- 36'' CO entrances not supported by nonmandatory appendix E=Elevator requirements for persons with physical disabilities in regions that support CNBC.

4- Overhead for 8'-0'' height cab. For 9'-0'' height cab, add 1'-0'' to overhead. For 10'-0''height cab, add 2'-0'' to overhead.

5- Minimum overhead leaves a 6'' clearance above elevator motor. To avoid any installation and/or maintenance problems, GT recommends increasing this clearance to 24''.
