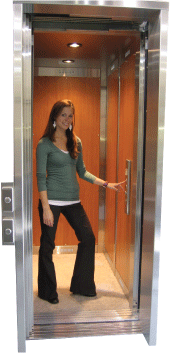

GT PERLA HDR^TM

(With Hydraulic Roped Drive System)

GT Accessibility, a Division of Global Tardif, in its continuation to provide the Accessibility market with leading-edge technology and products, is proud to introduce its new New Luxury Residential Lift, GT PERLA^TM. An indoor application full cab, now available with automatic Three (3) Speed Sliding Doors! Global Tardif is the first company to offer it as a standard product in North America !

The GT PERLA^TM is the right choice for home, building owners, or architects, looking for an architectural, Luxury, heavy duty constructed fully automated residential lift.

Standard features

• Automatic Three (3) Speed Sliding Doors
• 750 lbs (340 kg) Capacity
• 220V / 1ph / 60Hz.
• Single Automatic Operation
• Broken Cable Safety Device
• GT-EZPERLA^TM PLC Control with Tape Reader
• 8'' (203 mm) Pit Depth Only
• 108'' (2743 mm) Standard Overhead
• Soft Start, Soft Stop
• Safety Device
• Emergency Stop Button and Emergency Alarm Button
• Emergency Pit Switch
• Illuminated LED Buttons

Cab Features

• 6'-8'' (2032) mm Cab Height
• Two (2) Standard Cab Wall Colors
• Stainless Steel Satin Car Operating Panel
• Solid Ceiling with Incandescent Pot Lights
• Stainless Steel Satin Tubular Handrail

Standard GT EZ-Entrancesâ„¢

• Three (3) Speed Sliding Doors
• 1 ½ Hr UL/ ULC Fire Rated Entrances Assembly
• Sill Mounted Spring Door Closers
• Bolted Frame - Three Pieces Knock Down
• Square Profile Design - 2'' Jamb & Head Jamb Face

Options

• Emergency Battery Lowering Device
• Reduced Pit and Overhead
• Custom Plastic Laminated or Custom
  Wood Interior Finishes
• Custom Stainless or Bronze Finishes
• Custom Size, Custom Design, Architectural Cab Interior
• Glass Cab & Glass Doors
• Phone Cabinet or Hands Free Phone
• Digital Position Indicator
