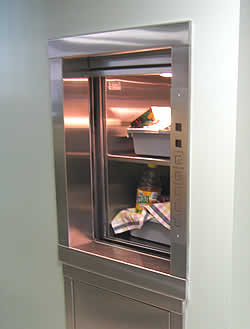

GT MasterWaiterTM
The GT Master WaiterTM is the perfect choice to satisfy all of your commercial, industrial or institutional dumbwaiter needs. Ideal for hospitals, hotels, clinics, warehouses, restaurants, retail stores, offices or daycare facilities.
We offer two different models : winding drum or traction dumbwaiters. Both are available for floor-level loading or counterheight loading.
Standard Features
• 100 to 595 lbs (45 to 270 kg) Capacity• Up to 50 ft (15 m) Travel - Winding Drum System
• Up to 300 ft (92 m) Travel - Traction 1:1 System
• 50 Fpm (0,25 m/sec) for Winding Drum
• 50 to 75 Fpm (0,25 - 0,375 m/sec) for Traction
• 1, 2 or 3 HP Motor Depending on
System Configuration and Speed
• Multiple Voltage 600/480/208V - 3ph. - 60Hz
• GT-MW3TM Control - Relay Logic
• Call & Send Operation
• Slack / Broken Cable Safety Device
• Heavy Duty "T" Shape Guide Rails
• 1 ½ hr Fire Rated Sound Isolated Machine
Access Door
• 1 ½ hr Fire Rated Bi-Parting or Up-Slide Doors• Illuminated Push Buttons
• ''In Use'' Light
• Overload Protection
• One (1) Shelf in Car Enclosure
Options
• Light & Gong• Self Supporting Tower
• Safety Device (Rail Side / Side Type)
• Custom Size
• Custom Arrangement
• Custom Finishes
• Side Openings
• Up to 200 FPM
• 220V / 1ph. / 60Hz
• Additional Shelves
• Proven Reliability & Dependable
• Abundant Safety Features
• Low Maintenance
• Quiet & Smooth Performance
• Robust Construction
• Simple Relay Logic Controller GT-MW3TM
• Easy Installation
• User Friendly
• Automatic Call & Send Operation
• Simple Cantilevered System
• Customizable
• Meets or Exceeds CSA B44 or ANSI 17.1 Code
• CSA Approved Components
| Related infos |
|
• Planning Guide & drawings • Brochure • Specifications (Pdf) (Word) • 1 Year Warranty • Request for proposal (PDF) (MS Excel) |
