GT Master Waiter™



Recommended Inside Cab Dimensions
Inside Width
Inside Depth
Inside Height
 24'' (610 mm)
 24'' (610 mm)
 24'' (610 mm)
 24'' (610 mm)
 24'' (610 mm)
 36'' (914 mm)
 30'' (760 mm)
 30'' (760 mm)
 36'' (914 mm)
 36'' (914 mm)
 36'' (914 mm)
 36'' (914 mm)
 36'' (914 mm)
 36'' (914 mm)
 47 1/4'' (1200 mm)




Overhead
Rail side-side type
Cantilever type
- Up slide type
- Floor loading
- Top machine		 - Bi-parting type
- Counter loading
- Bottom machine		 - Up slide type
- Floor loading
- Top machine		 - Bi-parting type
- Counter loading
- Bottom machine
9'-4" (2845)
8'-1" (2464)
9'-4" (2845)
8'-5" (2565)
10'-4" (3150)
9'-1" (2769)
10'-4" (3150)
9'-1" (2769)
10'-4" (3150)
9'-1" (2769)
10'-4" (3150)
9'-1" (2769)
10'-4" (3150)
9'-1" (2769)
10'-4" (3150)
9'-1" (2769)
10'-4" (3150) ***
10'-2" (3100)
10'-4" (3150) ***
10'-4" (3150)

*** Access door on opposite wall for overload machine

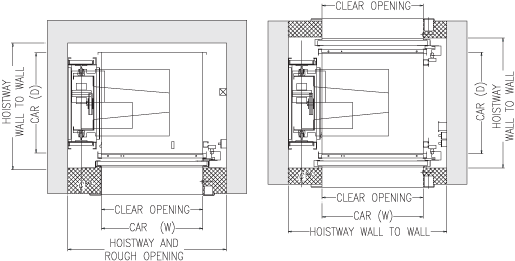

• Cantilever System

Hoistway Size Calculation (from cab dimensions)
Loading
Type
Vertical
Door
Width
Depth
Counter
Height
Pit Depth
Front
Only
Front &
Rear
Counter
Bi-parting
C.W. + 17"
C.D. + 7"
C.D. + 8.5"
34"
N/A
Floor
N/A
(C.H. / 2) + 6"
Floor
Up Slide
C. W. + 17"
C.D. + 7.5"
C.D. + 9.5"
N/A
14"
C.W. = Cab Width C.D. = Cab Depth
C.H. = Cab Height

 Autocad Drawings
    • Layout View
    • Elevation View


 PDF Drawings
    • Layout View
    • Elevation View 		You need Adobe Reader® to view these drawings. If not previously installed on your computer click on this button to download and install it :

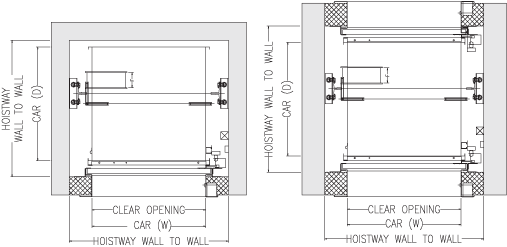

• Side to side System


Hoistway Size Calculation (from cab dimensions)
Loading
Type
Vertical
Door
Width
Depth
Counter
Height
Pit Depth
Front
Only
Front &
Rear
Counter
Bi-parting
C.W. + 13"
C.D. + 7"
C.D. + 8.5"
34"
N/A
Floor
N/A
(C.H. / 2) + 6"
Floor
Up Slide
C.W. + 13"
C.D. + 7.5"
C.D. + 9.5"
N/A
14"
C.W. = Cab Width C.D. = Cab Depth
C.H. = Cab Height

 Autocad Drawings
    • Layout View
    • Elevation View


 PDF Drawings
    • Layout View
    • Elevation View		 You need Adobe Reader® to view these drawings. If not previously installed on your computer click on this button to download and install it :
