GT VisionLift Hydraulictm
Holeless twin jack direct - Hospital type Technical guide

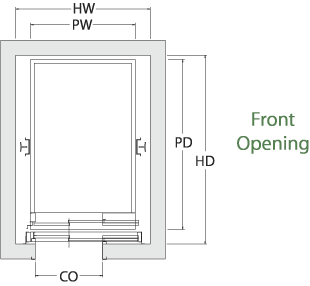

Hoistway Front Opening
Any size, any shape... we can go up to 60 000 lbs ! Please contact us to customize your project !
Click on the link to obtain the corresponding drawing :
| Type of opening |
Capacity | Hoistway width | Hoistway depth | Platform width |
Platform depth |
Cab interior width |
Cab interior depth |
Clear opening |
| Drawings | HW | HD | PW | PD | CIW | CID | CO | |
| 2SP | 2500 Lbs 1134 Kg |
6'-6" (1981 mm) |
8'-5" (2565 mm) |
4'-10' (1473 mm) |
7'-7" (2311 mm) |
4'-6" (1372 mm) |
6'-8" (2032 mm) |
3'-0" x 7'-0" (914 x 2134 mm) |
|
4000 Lbs
1814 Kg |
7'-7"
(2311 mm) |
9'-8"
(2946 mm) |
5'-8'
(1727 mm) |
8'-10 1/2"
(2705 mm) |
5'-4"
(1626 mm) |
7'-11"
(2413 mm) |
4'-0" x 7'-0"
(1219 x 2134 mm) |
|
|
4500 Lbs
2041 Kg |
7'-7"
(2311 mm) |
9'-8"
(2946 mm) |
6'-0"
(1829 mm) |
8'-10 1/2"
(2705 mm) |
5'-8"
(1727 mm) |
7'-11"
(2413 mm) |
4'-0" x 7'-0"
(1219 x 2134 mm) |
|
|
5000 Lbs
2268 Kg |
8'-4"
(2540 mm) |
10'-3"
(3124 mm) |
6'-3"
(1905 mm) |
9'-5 1/2"
(2883 mm) |
5'-11"
(1803 mm) |
8'-6"
(2591 mm) |
4'-6" x 7'-0"
(1372 x 2134 mm) |
Front & Rear Opening
Any size, any shape... we can go up to 60 000 lbs ! Please contact us to customize your project !
Click on the link to obtain the corresponding drawing :
| Type of opening |
Capacity | Hoistway width | Hoistway depth | Platform width |
Platform depth |
Cab interior width |
Cab interior depth |
Clear opening |
| Drawings | HW | HD | PW | PD | CIW | CID | CO | |
| 2SP | 2500 Lbs 1134 Kg |
6'-6" (1981 mm) |
9'-6 1/4" (2902 mm) |
4'-10' (1473 mm) |
8'-2 3/4" (2508 mm) |
4'-6" (1372 mm) |
6'-8 3/4" (2051 mm) |
3'-0" x 7'-0" (914 x 2134 mm) |
|
4000 Lbs
1814 Kg |
7'-7"
(2311 mm) |
10'-9 1/4"
(3283 mm) |
5'-8'
(1727 mm) |
9'-5 3/4"
(2889 mm) |
5'-4"
(1626 mm) |
7'-11 3/4"
(2432 mm) |
4'-0" x 7'-0"
(1219 x 2134 mm) |
|
|
4500 Lbs
2041 Kg |
7'-7"
(2311 mm) |
10'-9 1/4"
(3283 mm) |
6'-0"
(1829 mm) |
9'-5 3/4"
(2889 mm) |
5'-8"
(1727 mm) |
7'-11 3/4"
(2432 mm) |
4'-0" x 7'-0"
(1219 x 2134 mm) |
|
|
5000 Lbs
2268 Kg |
8'-4"
(2540 mm) |
11'-4 1/4"
(3461 mm) |
6'-3"
(1905 mm) |
10'-0 3/4"
(3067 mm) |
5'-11"
(1803 mm) |
8'-6 3/4"
(2610 mm) |
4'-6" x 7'-0"
(1372 x 2134 mm) |
Overhead dimension
|
Elevations View with Adobe® Reader® (PDF) Download Autocad file (DWG) |
Any size, any shape... we can go up to 60 000 lbs ! Please contact us to customize your project !
For 9 ft hight cab, add 1 ft to the clear overhead; For 10 ft hight cab, add 2 ft to the clear overhead.
Warning: Do not use those dimensions for final construction purposes. Local Code or Code year application might require differents spacing and will affect those dimensions. Please contact us for confirmation.
