GT VisionLift MRLtm
MRL Z3 - Passenger type Technical guide

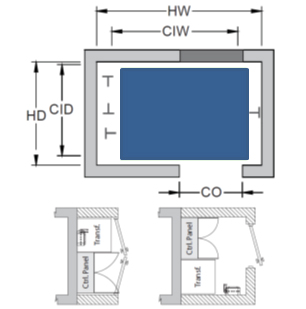

Front opening

FrontOpening

Any size,  any shape... We can go up to 10 000 lbs ! Please contact us to customize your project !

Type of
opening
Capacity Hoistway width

Hoistway depth

Cab interior
width
Cab interior depth Clear
Drawings   HW1 HD CIW CID CO2
SSP or CO3
2000 Lbs
(907 Kg)
8'-5"
(2565 mm)
5'-9"
(1753 mm)
5'-8"
(1727 mm)
4'-3"
(1295 mm)
3'-0" x 7'-0"
(914x2134 mm)
SSP or CO
2500 Lbs
(1134 Kg)
9'-5"
(2870 mm)
5'-9"
(1753 mm)
6'-8"
(2032 mm)
4'-3"
(1295 mm)
3'-6" x 7'-0"
(1067x2134 mm)
SSP or CO
3000 Lbs
(1361 Kg)
9'-5"
(2870 mm)
6'-3"
(1905 mm)
6'-8"
(2032 mm)
4'-9"
(1448 mm)
3'-6" x 7'-0"
(1067x2134 mm)
SSP or CO
3500 Lbs
(1588 Kg)
9'-5"
(2870 mm)
6'-11"
(2108 mm)
6'-8"
(2032 mm)
5'-5"
(1651 mm)
3'-6" x 7'-0"
(1067x2134 mm)
CO
4000 Lbs
(1814 Kg)
10'-5"
(3175 mm)
6'-11"
(2108 mm)
7'-8"
(2337 mm)
5'-5"
(1651 mm)
4'-0" x 7'-0"
(1219x2134 mm)




Speed
fpm
(m/s)
Overhead
Pit depth
OH5
P
Minimum Recommended

200

(1,00)

15'-6''

(4724 mm)

17'-0''

(5182 mm)

5'-0''

(1524 mm)

350

(1,75)

16'-0''

(4877 mm)

17'-6''

(5334 mm)

5'-6''

(1676 mm)

500

(2,5)

17'-0''

(5182 mm)

18'-6''

(5639 mm)

6'-6''

(1981 mm)


Control room dimensions
Type Width Depth Height
Closet door

5'-9''

(1753 mm)

3'-0''

(914 mm)

8'-0''

(2438 mm)

Single door

5'-9''

(1753 mm)

4'-9''

(1448 mm)

8'-0''

(2438 mm)







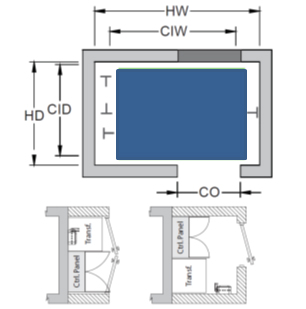

Front & rear opening

FrontRearOpening

Any size,  any shape... We can go up to 10 000 lbs ! Please contact us to customize your project !

Type of
opening
Capacity Hoistway width

Hoistway depth

Cab interior
width
Cab interior depth Clear
Drawings   HW1 HW CIW CID CO2
SSP or CO3
2000 Lbs
(907 Kg)
8'-5"
(2565 mm)
6'-7 1/4"
(2013 mm)
5'-8"
(1727 mm)
4'-3 3/4"
(1314 mm)
3'-0" x 7'-0"
(914x2134 mm)
SSP or CO
2500 Lbs
(1134 Kg)
9'-5"
(2870 mm)
6'-7 1/4"
(2013 mm)
6'-8"
(2032 mm)
4'-3 3/4"
(1314 mm)
3'-6" x 7'-0"
(1067x2134 mm)
SSP or CO
3000 Lbs
(1361 Kg)
9'-5"
(2870 mm)
7'-1 1/4"
(2165 mm)
6'-8"
(2032 mm)
4'-9 3/4"
(1467 mm)
3'-6" x 7'-0"
(1067x2134 mm)
SSP or CO
3500 Lbs
(1588 Kg)
9'-5"
(2870 mm)
7'-9 1/4"
(2369 mm)
6'-8"
(2032 mm)
5'-5 3/4"
(1670 mm)
3'-6" x 7'-0"
(1067x2134 mm)
CO
4000 Lbs
(1814 Kg)
10'-5"
(3175 mm)
7'-9 1/4"
(2369 mm)
7'-8"
(2337 mm)
5'-5 3/4"
(1670 mm)
4'-0" x 7'-0"
(1219x2134 mm)




Speed
fpm
(m/s)
Overhead
Pit depth
OH5
P
Minimum Recommended

200

(1,00)

15'-6''

(4724 mm)

17'-0''

(5182 mm)

5'-0''

(1524 mm)

350

(1,75)

16'-0''

(4877 mm)

17'-6''

(5334 mm)

5'-6''

(1676 mm)

500

(2,5)

17'-0''

(5182 mm)

18'-6''

(5639 mm)

6'-6''

(1981 mm)


Control room dimensions
Type Width Depth Height
Closet door

5'-9''

(1753 mm)

3'-0''

(914 mm)

8'-0''

(2438 mm)

Single door

5'-9''

(1753 mm)

4'-9''

(1448 mm)

8'-0''

(2438 mm)



* Any size,  any shape... We can go up to 10 000 lbs ! Please contact us to customize your project !

* WARNING * Do not use those dimensions for final construction purposes. Local code or code year application might require different spacing and will affect those dimensions. Please contact us for confirmation.

Notes:

1- For elevators with occupied space underneath hoistway, width may change. Please contact us for dimensions.

2- Optional custom height door opening also available. For glassback dimensions, please contact us.

3- 36'' CO entrances not supported by nonmandatory appendix E=Elevator requirements for persons with physical disabilities in regions that support CNBC.

4- Overhead for 8'-0'' height cab. For 9'-0'' height cab, add 1'-0'' to overhead. For 10'-0''height cab, add 2'-0'' to overhead.

5- Minimum overhead leaves a 6'' clearance above elevator motor. To avoid any installation and/or maintenance problems, GT recommends increasing this clearance
