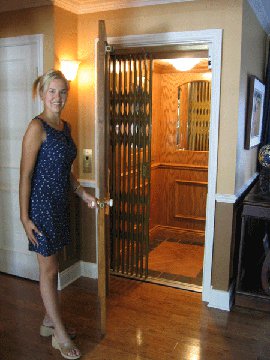

Hydraulic residential lift GT 100R™/ GT Accessibility

GT 100RTM Standard features Standard cab features Options

GT100R

Related infos

• Planning guide & drawings

 • Brochure

 • Specifications (PDF) (WORD

 • Cab weight chart

 • Plastic laminates (option)

 • Entrance colors

 • 1 Year warranty

 •  Request for proposal (PDF) (Excel)

• Capacity: 1000 lbs (454 kg)
• 1:2 cable hydraulic drive system
• 30 fpm (0,15 m/sec)
• 3 HP motor
• 220V / 1ph / 60Hz.
• GT-EZ100RTM control with tape reader
• Submersible motor with submersible pump
  Unit GT-100SBPowerTM
• 10'' (254 mm) pit depth only
• 96'' (2438 mm) overhead
• Emergency lowering valve
• Two way levelling
• Emergency UPS lowering device
• Constant pressure operation
• Slack/broken cable safety device
• Emergency stop button with alarm
• Down speed flow control
• Low pressure switch safety device
• Emergency pit switch
• In use indicator
• 6'-8'' (2032 mm cab height)
• Two (2) standard sab wall colors
• Stainless steel #4 modular CAB shell wall reveals and bases
• Stainless steel satin car operating panel
• Ceiling: melamine panel with 2 pot lights
• Plywood flooring with recess to allow floor finish by others
• Stainless steel satin handrail
• Single automatic operation
• Reduced pit and overhead
• Alternate cab wall colors
• Multi-speed valve
• Manual or automatic collapsible car gate
  GT-WoodfoldTM or GT-VisifoldTM
• Standard GT door frame and hardware
• Automatic or manual GT-swingdoorsTM
• Custom plastic laminate or custom wood interior finishes
• Custom stainless or bronze finishes
• Custom size, custom design, architectural cab interior
• Retiring cam
• Electric strike - prudhomme
• Glass cab & glass doors
• Phone cabinet or hands free phone
• Digital position indicator
