GT VisionLift Hydraulictm
Holeless twin jack ropedPassenger type Technical guide

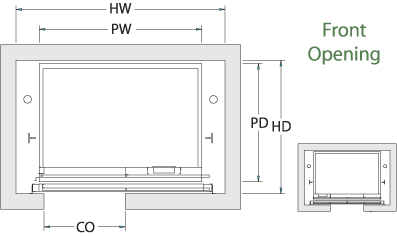

Front opening

HolessTwinRopedPassengerFront

Any size, any shape... we can go up to 60 000 lbs ! Please contact us to customize your project !

Click on the link to obtain the corresponding drawing :

Type of
opening
Capacity Hoistway width Hoistway depth Platform
width
Platform
depth
Cab interior
width
Cab interior
depth
Clear
opening
Drawings   HW HD PW PD CIW CID CO
 SSP 2100 Lbs
(953 Kg)
 8'-0"
(2438 mm)
 5'-9"
(1753 mm)
 6'-0"
(1829 mm)
 5'-1"
(1549 mm)
 5'-8"
(1727 mm)
 4'-3"
(1295 mm)
 3'-0" x 7'-0"
(914x2134 mm)
 SSP, CO  2500 Lbs
(1134 Kg)
 9'-0"
(2743 mm)
 5'-9"
(1753 mm)
 7'-0"
(2134 mm)
 5'-1"
(1549 mm)
 6'-8"
(2032 mm)
 4'-3"
(1295 mm)
 3'-6" x 7'-0"
(1067x2134 mm)
 SSP, CO  3000 Lbs
(1361 Kg)
 9'-0"
(2743 mm)
 6'-3"
(1905 mm)
 7'-0"
(2134 mm)
 5'-7"
(1702 mm)
 6'-8"
(2032 mm)
 4'-9"
(1448 mm)
 3'-6" x 7'-0"
(1067x2134 mm)
 SSP, CO  3500 Lbs
(1588 Kg)
 9'-0"
(2743 mm)
 6'-11"
(2108 mm)
 7'-0"
(2134 mm)
 6'-3"
(1905 mm)
 6'-8"
(2032 mm)
 5'-5"
(1651 mm)
 3'-6" x 7'-0"
(1067x2134 mm)
CO  4000 Lbs
(1814 Kg)
 10'-0"
(3048 mm)
 6'-11"
(2108 mm)
 8'-0"
(2438 mm)
 6'-3"
(1905 mm)
 7'-8"
(2337 mm)
 5'-5"
(1651 mm)
 4'-0" x 7'-0"
(1219x2134 mm)



 Front opening & Rear opening

HolessTwinRopedPassengerFrontRear

Any size, any shape... we can go up to 60 000 lbs ! Please contact us to customize your project !

Click on the link to obtain the corresponding drawing :

Type of
opening
Capacity Hoistway width Hoistway depth Platform
width
Platform
depth
Cab interior
width
Cab interior
depth
Clear
opening
Drawings   HW HD PW PD CIW CID CO
 SSP 2100 Lbs
(953 Kg)
8'-0"
(2438 mm)
6'-7 1/4"
(2013 mm)
 6'-0"
(1829 mm)
5'-6 3/4"
(1695 mm)
 5'-8"
(1727 mm)
4'-3 3/4"
(1314 mm)
 3'-0" x 7'-0"
(914x2134 mm)
 SSP, CO  2500 Lbs
(1134 Kg)
9'-0"
(2743 mm)
6'-7 1/4"
(2013 mm)
7'-0"
(2134 mm)
5'-6 3/4"
(1695 mm)
6'-0"
(2032 mm)
4'-3 3/4"
(1314 mm)
3'-6" x 7'-0"
(1067x2134 mm)
 SSP, CO  3000 Lbs
(1361 Kg)
9'-0"
(2743 mm)
7'-1 1/4"
(2165 mm)
 7'-0"
(2134 mm)
6'-0 3/4"
(1848 mm)
6'-8"
(2032 mm)
4'-9 3/4"
(1467 mm)
3'-6" x 7'-0"
(1067x2134 mm)
 SSP, CO  3500 Lbs
(1588 Kg)
9'-0"
(2743 mm)
7'-9 1/4"
(2369 mm)
 7'-0"
(2134 mm)
6'-8 3/4"
(2051 mm)
 6'-8"
(2032 mm)
5'-5 3/4"
(1670 mm)
3'-6" x 7'-0"
(1067x2134 mm)
CO  4000 Lbs
(1814 Kg)
10'-0"
(3048 mm)
7'-9 1/4"
(2369 mm)
 8'-0"
(2438 mm)
6'-8 3/4"
( 2051 mm)
 7'-8"
(2337 mm)
5'-5 3/4"
(1670 mm)
4'-0" x 7'-0"
(1219x2134 mm)



Overhead dimension
Speed (fpm)
Overhead (OH)
up to 100
12'-6''
125
12'-6''
150
12'-6''
Pit dimension
Location
Pit depth
USA - Canada
(except Ontario)
4'-0''
Ontario
5'-0''
Machine room dimensions
Width
6'-6"
(1981 mm)
Depth
6'-6"
(1981 mm)

Elevations

View with Adobe® Reader® (PDF)

Front opening

Front & rear opening

Download Autocad file (DWG)

Front opening

Front & rear opening



Any size, any shape... we can go up to 60 000 lbs ! Please contact us to customize your project !

For 9 ft hight cab, add 1 ft to the clear overhead; For 10 ft hight cab, add 2 ft to the clear overhead.

Warning: Do not use those dimensions for final construction purposes. Local Code or Code year application might require differents spacing and will affect those dimensions. Please contact us for confirmation.
