GT VisionLift Hydraulictm
Holed (in-ground) - Passenger type Technical guide
Front opening
Any size, any shape... we can go up to 60 000 lbs ! Please contact us to customize your project !
Click on the link to obtain the corresponding drawing :
Type of opening |
Capacity | Hoistway width | Hoistway depth | Platform width | Platform depth |
Cab interior width | Cab interior depth |
Clear opening |
Drawings | HW | HD | PW | PD | CIW | CID | CO | |
2100 Lbs
(953 Kg) |
7'-4"
(2235 mm) |
5'-9"
(1753 mm) |
6'-0"
(1829 mm) |
5'-1"
(1549 mm) |
5'-8"
(1727 mm) |
4'-3"
(1295 mm) |
3'-0" x 7'-0"
(914x2134 mm) |
|
2500 Lbs
(1134 Kg) |
8'-4"
(2540 mm) |
5'-9"
(1753 mm) |
7'-0"
(2134 mm) |
5'-1"
(1549 mm) |
6'-8"
(2032 mm) |
4'-3"
(1295 mm) |
3'-6" x 7'-0"
(1067x2134 mm) |
|
3000 Lbs
(1361 Kg) |
8'-4"
(2540 mm) |
6'-3"
(1905 mm) |
7'-0"
(2134 mm) |
5'-7"
(1702 mm) |
6'-8"
(2032 mm) |
4'-9"
(1448 mm) |
3'-6" x 7'-0"
(1067x2134 mm) |
|
3500 Lbs
(1588 Kg) |
8'-4"
(2540 mm) |
6'-11"
(2108 mm) |
7'-0"
(2134 mm) |
6'-3"
(1905 mm) |
6'-8"
(2032 mm) |
5'-5"
(1651 mm) |
3'-6" x 7'-0"
(1067x2134 mm) |
|
4000 Lbs
(1814 Kg) |
9'-4"
(2845 mm) |
6'-11"
(2108 mm) |
8'-0"
(2438 mm) |
6'-3"
(1905 mm) |
7'-8"
(2337 mm) |
5'-5"
(1651 mm) |
4'-0" x 7'-0"
(1219x2134 mm) |

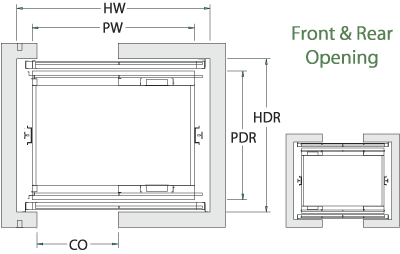

Front opening & Rear opening
Any size, any shape... we can go up to 60 000 lbs ! Please contact us to customize your project !
Click on the link to obtain the corresponding drawing :
Type of opening |
Capacity | Hoistway width | Hoistway depth | Platform width |
Platform depth |
Cab interior width | Cab interior depth |
Clear opening |
Drawings | HW | HDR | PW | PDR | CIW | CID | CO | |
2100 Lbs
(953 Kg) |
7'-4"
(2235 mm) |
6'-7 1/4"
(2013 mm) |
6'-0"
(1829 mm) |
5'-6 3/4"
(1695 mm) |
5'-8"
(1727 mm) |
4'-3 3/4"
(1314 mm) |
3'-0" x 7'-0"
(914x2134 mm) |
|
2500 Lbs
(1134 Kg) |
8'-4"
(2540 mm) |
6'-7 1/4"
(2013 mm) |
7'-0"
(2134 mm) |
5'-6 3/4"
(1695 mm) |
6'-8"
(2032 mm) |
4'-3 3/4"
(1314 mm) |
3'-6" x 7'-0"
(1067x2134 mm) |
|
3000 Lbs
(1361 Kg) |
8'-4"
(2540 mm) |
7'-1 1/4"
(2165 mm) |
7'-0"
(2134 mm) |
6'-0 3/4"
(1848 mm) |
6'-8"
(2032 mm) |
4'-9 3/4"
(1467 mm) |
3'-6" x 7'-0"
(1067x2134 mm) |
|
3500 Lbs
(1588 Kg) |
8'-4"
(2540 mm) |
7'-9 1/4"
(2369 mm) |
7'-0"
(2134 mm) |
6'-8 3/4"
(2051 mm) |
6'-8"
(2032 mm) |
5'-5 3/4"
(1670 mm) |
3'-6" x 7'-0"
(1067x2134 mm) |
|
4000 Lbs
(1814 Kg) |
9'-4"
(2845 mm) |
7'-9 1/4"
(2369 mm) |
8'-0"
(2438 mm) |
6'-8 3/4"
(2051 mm) |
7'-8"
(2337 mm) |
5'-5 3/4"
(1670 mm) |
4'-0" x 7'-0"
(1219x2134 mm) |
Overhead dimension
|
Elevations View with Adobe® Reader® (PDF) Download Autocad file (DWG) |
Any size, any shape... we can go up to 60 000 lbs ! Please contact us to customize your project !
For 9 ft hight cab, add 1 ft to the clear overhead; For 10 ft hight cab, add 2 ft to the clear overhead.
Warning: Do not use those dimensions for final construction purposes. Local Code or Code year application might require differents spacing and will affect those dimensions. Please contact us for confirmation.
