GT VisionLift MRLtm
MRL Genius - Passenger type Technical guide



Front opening

frontOpening

Any size,  any shape... We can go up to 10 000 lbs ! Please contact us to customize your project !

Type of
opening
Capacity Hoistway width1

Hoistway depth

Cab interior
width
Cab interior depth Clear2

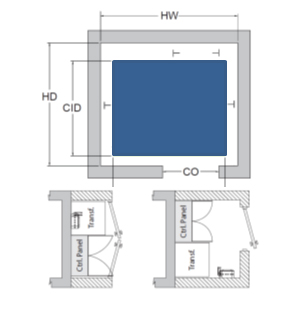

Drawings   HW HD CIW CID CO
SSP or CO3
2000 Lbs
(907 Kg)
7'-8"
(2337 mm)
6'-8"
(2032 mm)
5'-8"
(1727 mm)
4'-3"
(1295 mm)
3'-0" x 7'-0"
(914x2134 mm)
SSP or CO
2500 Lbs
(1134 Kg)
8'-8"
(2642 mm)
6'-8"
(2032 mm)
6'-8"
(2032 mm)
4'-3"
(1295 mm)
3'-6" x 7'-0"
(1067x2134 mm)
SSP or CO
3000 Lbs
(1361 Kg)
8'-8"
(2642 mm)
7'-2"
(2184 mm)
6'-8"
(2032 mm)
4'-9"
(1448 mm)
3'-6" x 7'-0"
(1067x2134 mm)
SSP or CO
3500 Lbs
(1588 Kg)
8'-8"
(2642 mm)
7'-10"
(2348 mm)
6'-8"
(2032 mm)
5'-5"
(1651 mm)
3'-6" x 7'-0"
(1067x2134 mm)
CO
4000 Lbs
(1814 Kg)
9'-8"
(2946 mm)
7'-10"
(2388 mm)
7'-8"
(2337 mm)
5'-5"
(1651 mm)
4'-0" x 7'-0"
(1219x2134 mm)




Speed
fpm
(m/s)
Overhead
Pit depth
OH5
P
Minimum Recommended

200

(1,00)

15'-0''

(4572 mm)

16'-6''

(5029 mm)

5'-6''

(1676 mm)

350

(1,75)

15'-6''

(4724 mm)

17'-0''

(5182 mm)

5'-6''

(1676 mm)

500

(2,5)

16'-6''

(5029 mm)

18'-0''

(5486 mm)

6'-6''

(1981 mm)


Control Room Dimensions
Type Width Depth Height
Closet door

5'-9''

(1753 mm)

3'-0''

(914 mm)

8'-0''

(2438 mm)

Single door

5'-9''

(1753 mm)

4'-9''

(1448 mm)

8'-0''

(2438 mm)









* Any size,  any shape... We can go up to 10 000 lbs ! Please contact us to customize your project !

* WARNING * Do not use those dimensions for final construction purposes. Local code or code year application might require different spacing and will affect those dimensions. Please contact us for confirmation.

Notes:

1- For elevators with occupied space underneath hoistway, width may change. Please contact us for dimensions.

2- Optional custom height door opening also available. For glassback dimensions, please contact us.

3- 36'' CO entrances not supported by nonmandatory appendix E=Elevator requirements for persons with physical disabilities in regions that support CNBC.

4- Overhead for 8'-0'' height cab. For 9'-0'' height cab, add 1'-0'' to overhead. For 10'-0''height cab, add 2'-0'' to overhead.

5- Minimum overhead leaves a 6'' clearance above elevator motor. To avoid any installation and/or maintenance problems, GT recommends increasing this clearance to 24''.
